IFM SM9000

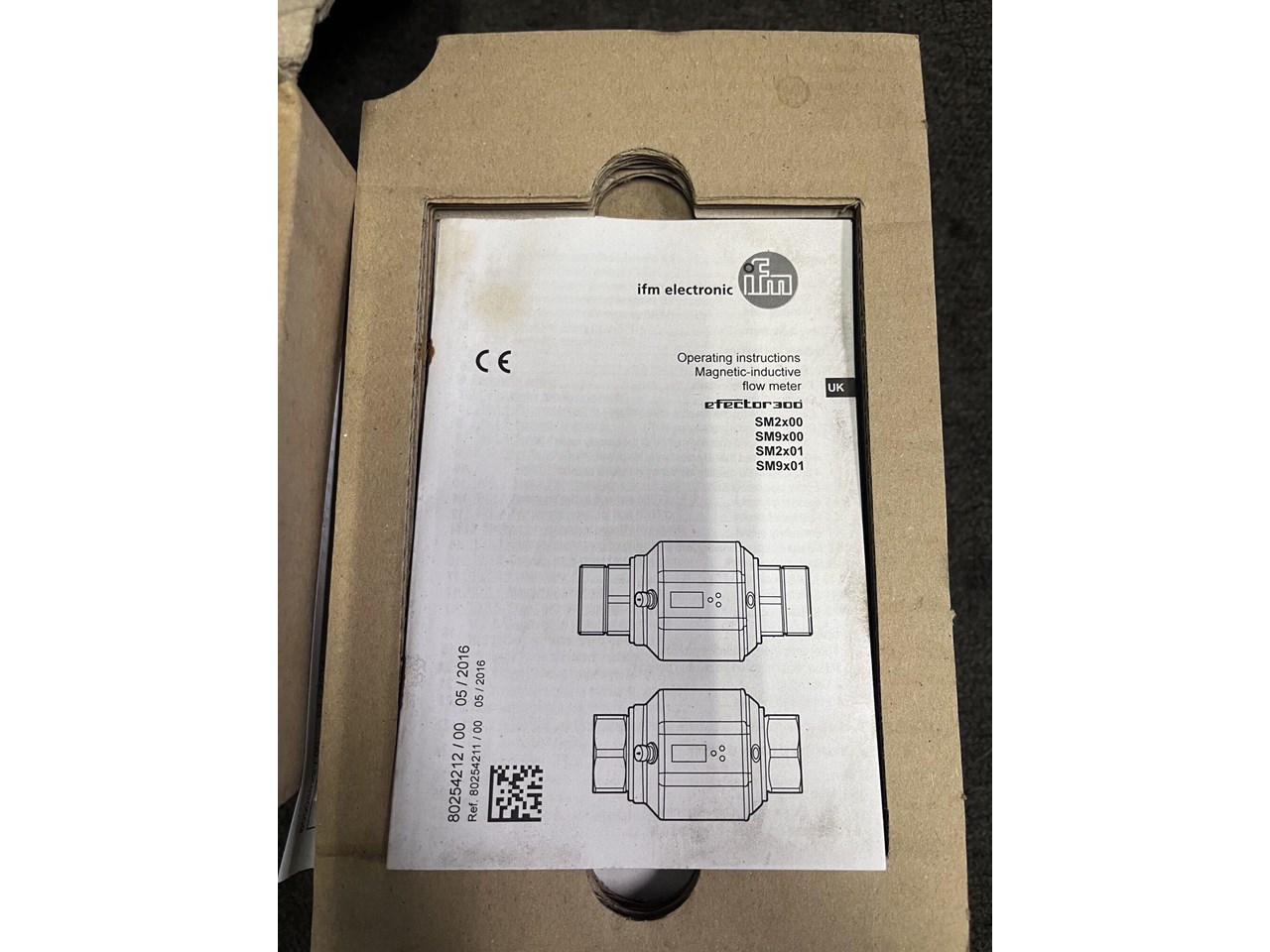

IFM - Magnetic-inductive flow meter SM9000 This item is new, never used from a surplus parts stores and still in original box. We have 2 units available for purchase. Please see attachment for more information. Precise measurement of flow, consumption and medium temperature High accuracy, repeatability and measurement dynamics Precise empty pipe detection With switching output, analogue output and pulse output Clearly visible 4-digit LED display Convenient operation via buttons or parameter setting via IO-Link Product characteristics: Number of inputs and outputs - Number of digital outputs: 2; Number of analogue outputs: 1 Measuring range - 5...300 l/min to 0.3...18 m³/h Process connection - threaded connection G 2 external thread DN50 flat seal Application: Special feature - Gold-plated contacts Application - totaliser function; empty pipe detection; for industrial applications Installation - connection to pipe by means of an adapter Media - conductive liquids; water; hydrous media Note on media - conductivity: ? 20 µS/cm / viscosity: < 70 mm²/s (40 °C) Medium temperature [°C] -10...90 Pressure rating 16 bar 1.6 MPa
