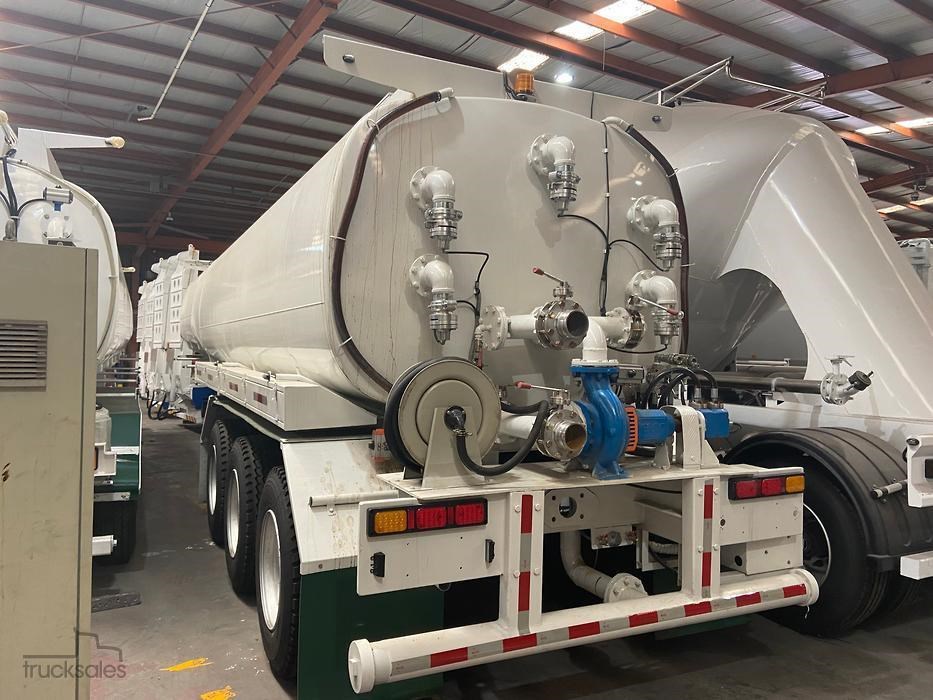

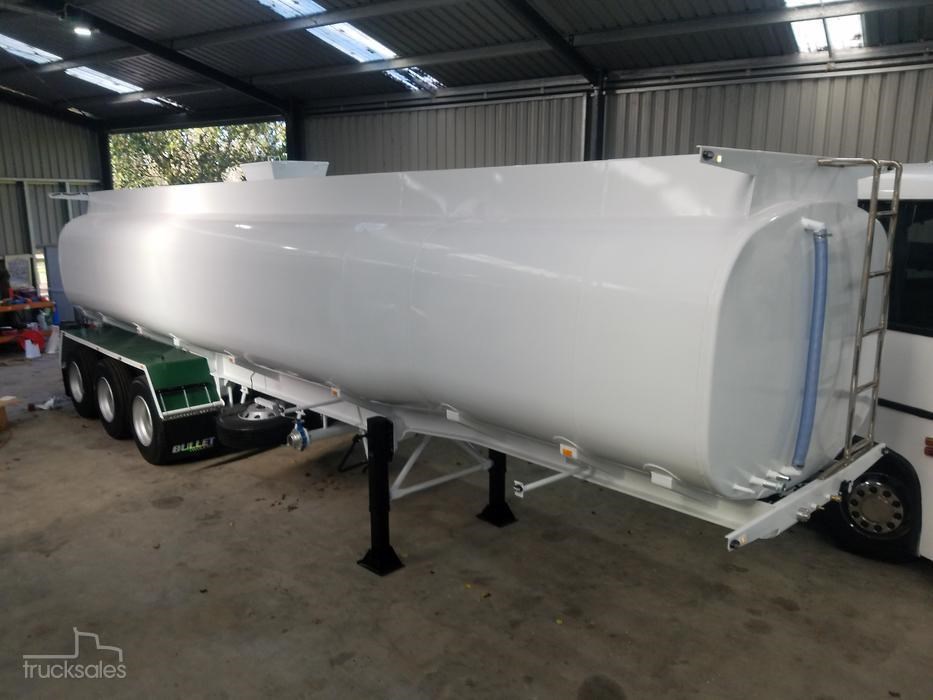

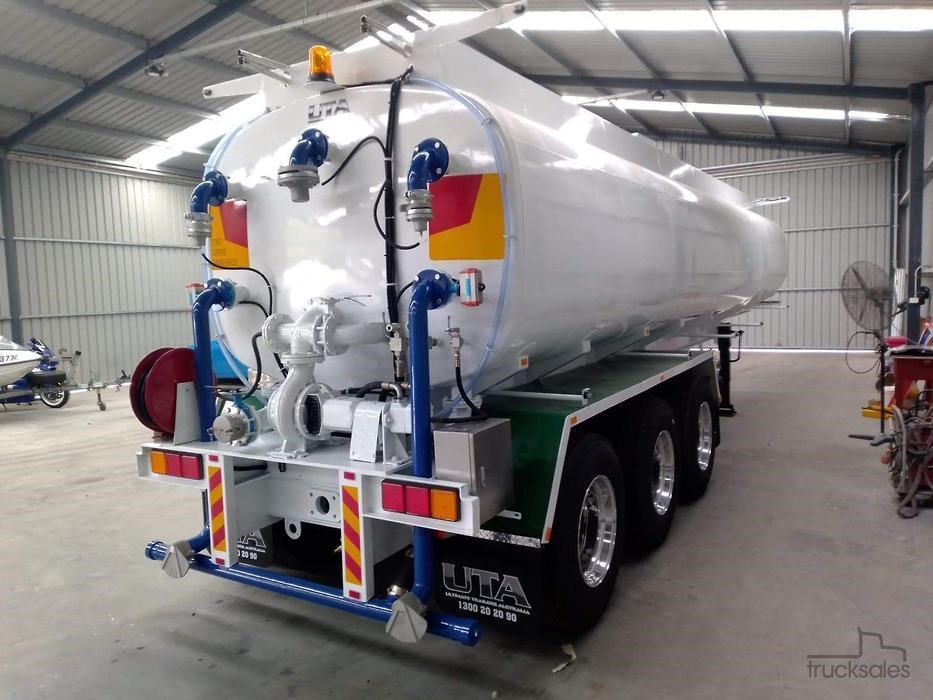

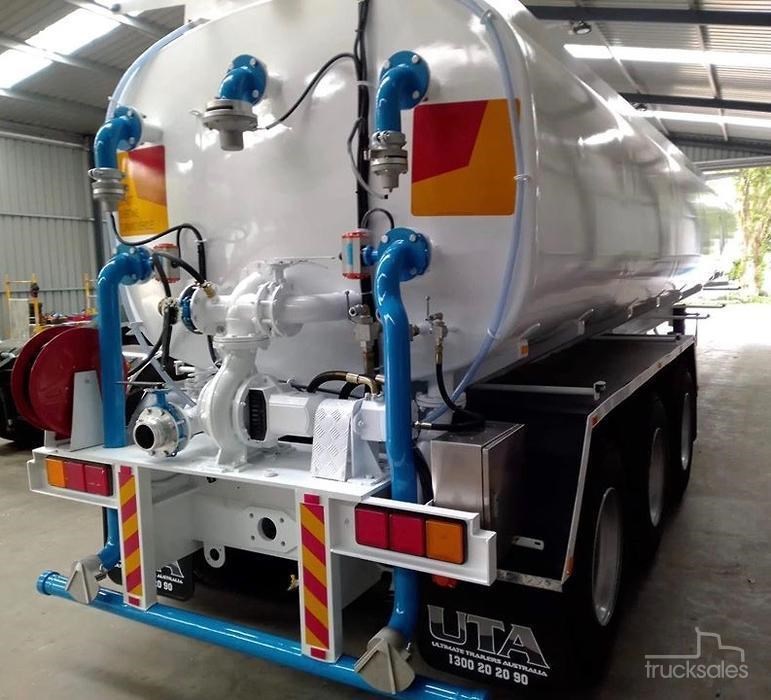

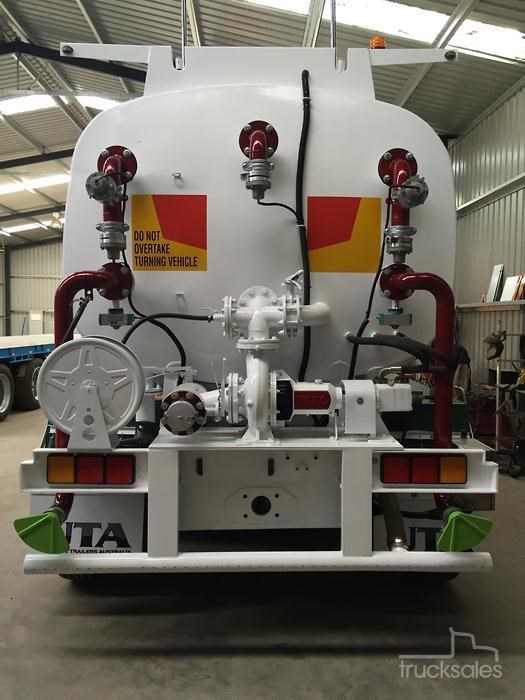

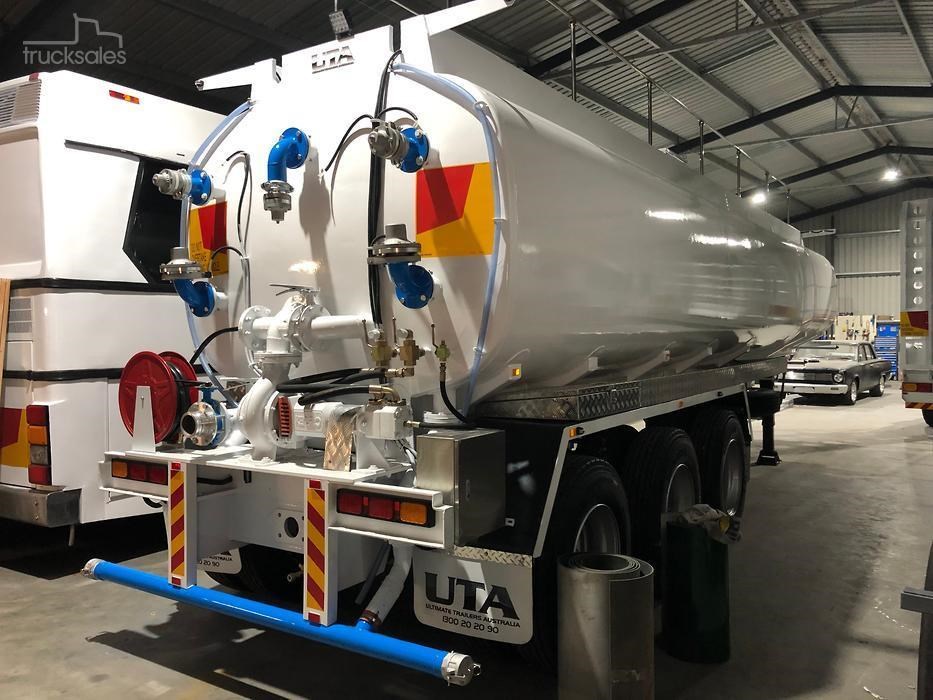

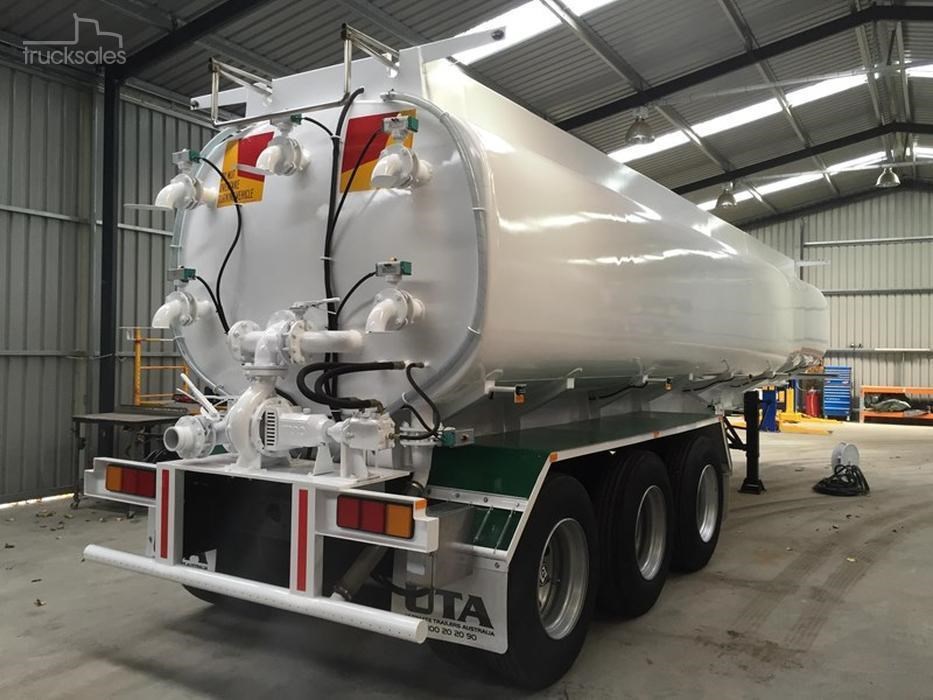

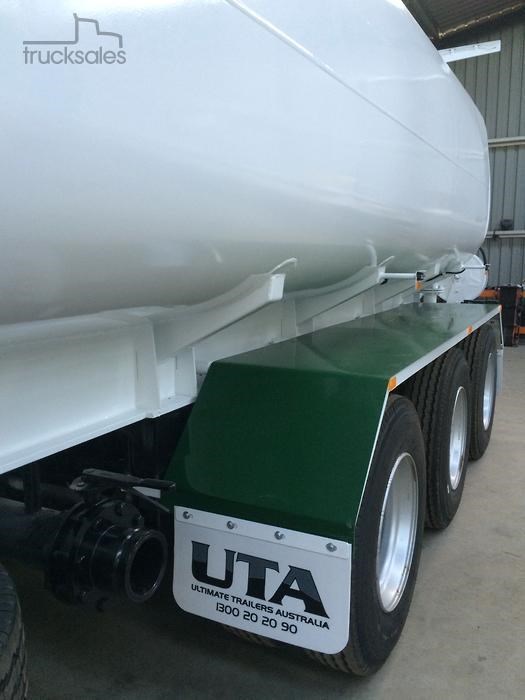

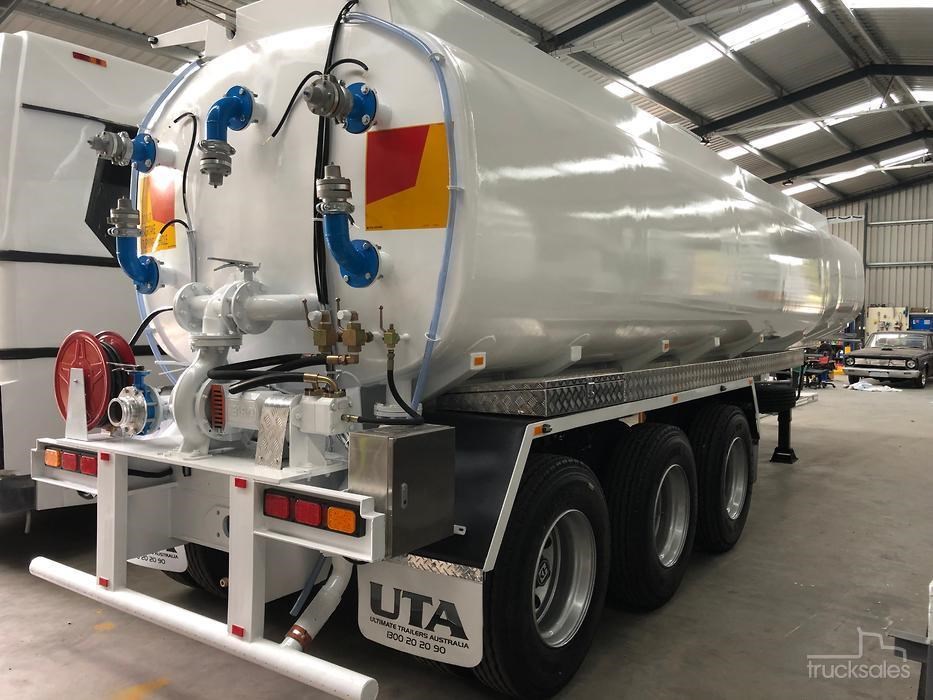

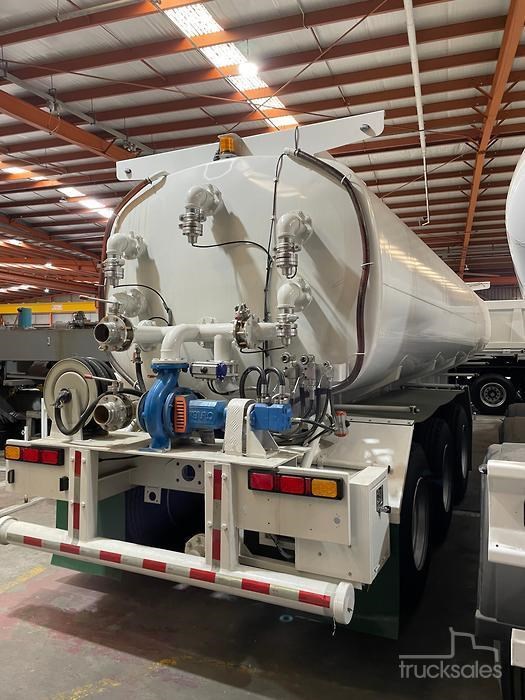

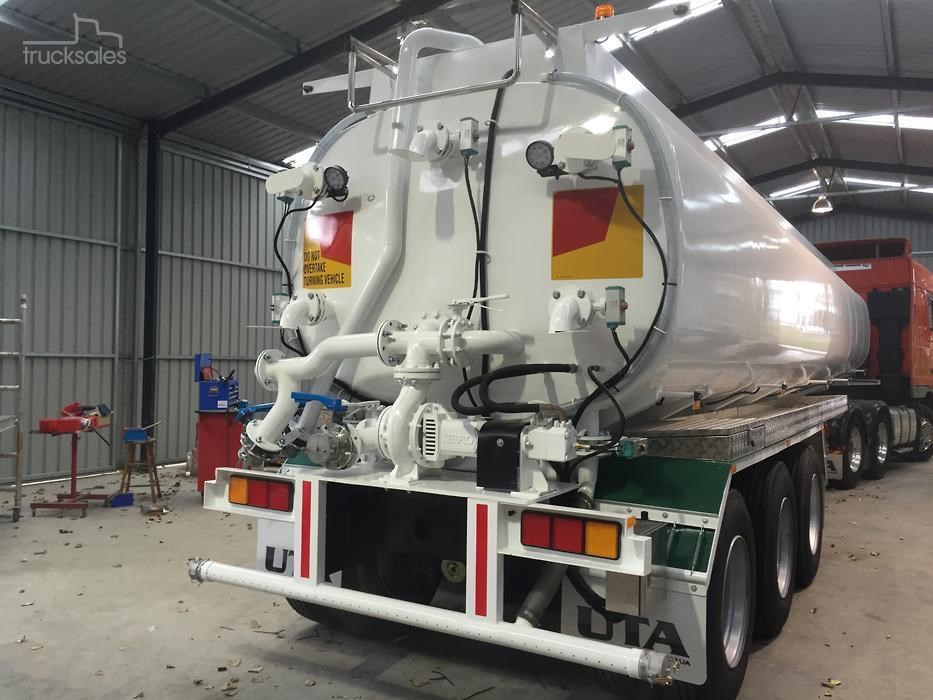

2026 UTA TRI-AXLE 32,000L SPRAY TANKER SEMI TRAILER

UTA 32,000 Litre Road Spray Tanker
NEW 2025
UTA Trailers is the No.1 Seller of Spray Tankers in the country. We have sold over 1000 of these robust units to customers nationwide!
Expertly designed by our team with over 20 years of manufacturing transport equipment
Feel free to call our team for any and all questions!

SPECIFICATIONS
MOTOR: PTO Driven Vane Vickers 25m Hydromotor

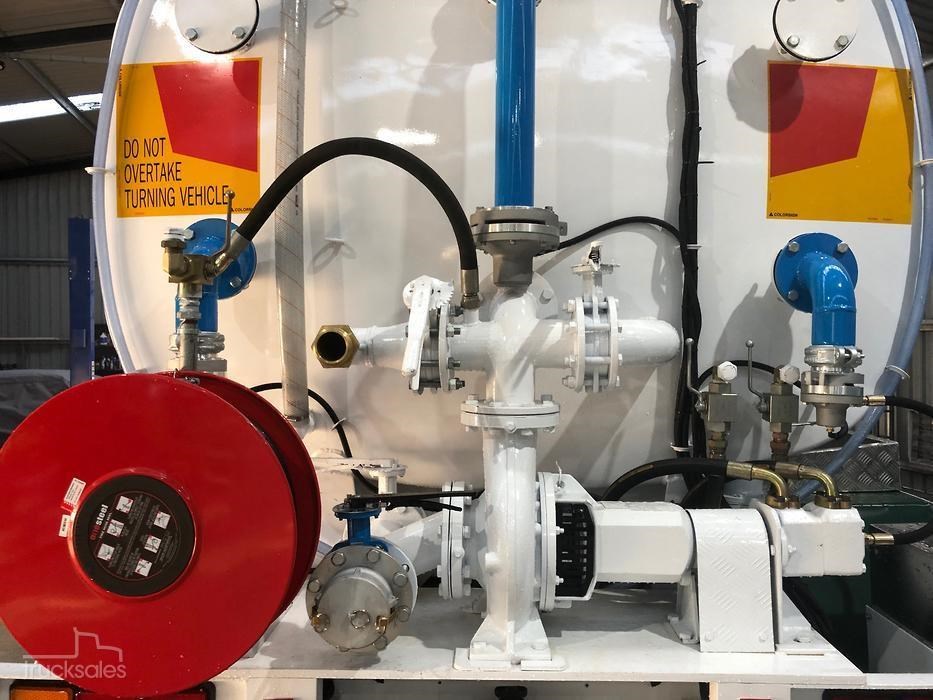

WATER PUMP: Kenflow 5-inch 4000LPM Water Pump
FIT OUT: 5 x Fan Sprays, Dribble Bar all with Air Actuated Valves (Magnum sprays also available)
BAFFLE SYSTEM: Patented Longitudinal Baffling System including a Fitted Sight Hose to Front 5 x Internal Baffles, with Water Movement Prevention Parallel Baffle System
VALVE AND CAM LOCKS: 1 x 4-inch Self-Fill and 1 x 4-inch Side Outlet
SUPPLY/RETURN/DRAIN: 1-inch Supply, 1-inch Return, and ½-inch Case Drain
MAN HOLES: 3 x Top Manholes 660mm Diameter (One with funnel)
AXLE TYPE: K-Hitch 11.5 Ton Tri Axle, 10 Stud

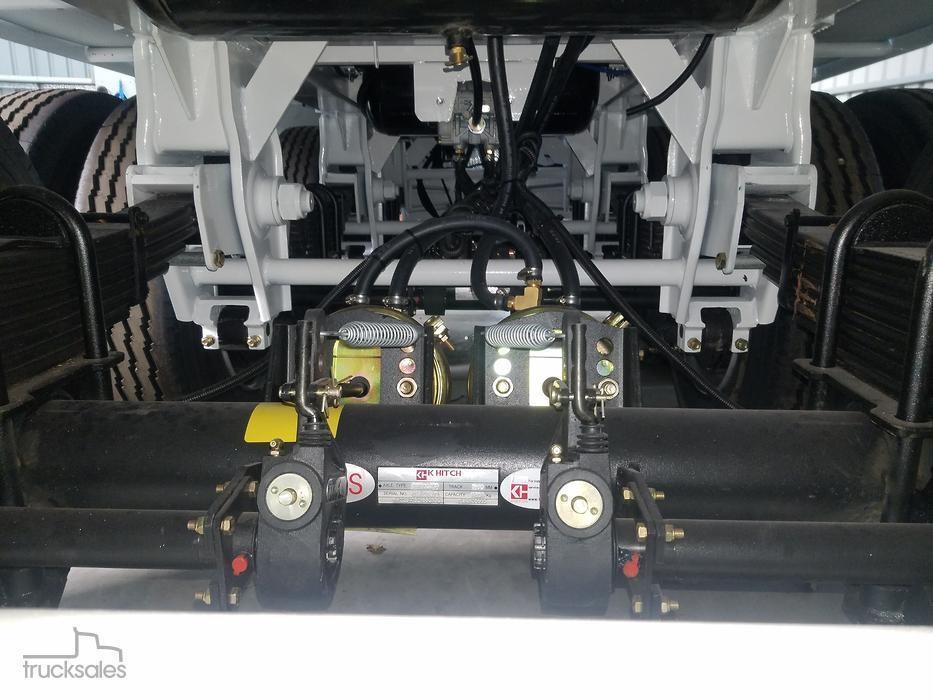

SUSPENSION TYPE: Heavy Duty K-Hitch 17 Tonne 9 Leaf Rocker Spring Suspension
JOST SETUP: Jost 2 Speed Landing Gear and Jost 2 Inch Bolt in Kingpin 2 Positions
TANK MATERIAL: 6mm Carbon Steel | Q345 Grade Steel High Tensile Chassis Beams
PAINT: Exterior, 3 x Coats of 2 Pack White | Interior Tank, 2 x Coats of Rust/Bore Water Resistant Paint
BRAKING SYSTEM: Wabco EBS Braking System
WHEELS: 22.5 by 8.25 10 Stud Steel Rims (285 PCD)
TYRES: 11R/22.5 16 Ply Off Road Rated

FEATURES:
- Road Train Bracket - ADR Approved.
- 2 x 4 inch Hand Valves and Cam Locks to Centre Gravity Feed
- All Hydromotor Plumbing and Accessory Valves for Roadtrain Connection
- Sight Hose to Front
- Remote Air Actuated Pop-Up Stainless Steel Safety Hand Rail
- Wireless Handheld Remote Control
- 1 inch x 20 metres Hose Reel
- Stainless Steel Ladder to front
- UTA Flexi-Guards
- Multi Volt LED Lighting
- Spare Wheel
- Dual Tyre Carrier

3-Year Structural Warranty inlcuded
12-Month Comprehensive Warranty included
Registration Available
